Gaussian Mixture Models (GMM)
Gaussian Mixture Models (GMMs) are probabilistic models that assume data points are composed by a mixture .of several Gaussian distributions with unknown parameters. GMMs allow the decomposition of a complex dataset into a set of simpler, underlying Gaussian components.
This pyCO2stats module permits the synthetic sampling, computation of the PDF (probability density function) and the fit of GMMs.
Generation of a set of synthetic populations
Script to create a set of synthetic samples with pyco2stats.GMM.
[22]:
import pyco2stats as PyCO2
import numpy as np
# Case #1: synthetic sample, 2 components, n_samples = 100
my_means_2c = np.array([0.7, 2])
my_stds_2c = np.array([0.6, 0.4])
my_weights_2c = np.array([0.4, 0.6])
my_sample_1 = PyCO2.GMM.sample_from_gmm(n_samples=100, means=my_means_2c,
stds=my_stds_2c, weights=my_weights_2c, random_state=42)
# Case #2: the same of Case #1, but with n_samples = 1000
my_sample_2 = PyCO2.GMM.sample_from_gmm(n_samples=1000, means=my_means_2c,
stds=my_stds_2c, weights=my_weights_2c, random_state=42)
# Case #3: synthetic sample 3 components, n_samples = 1000
my_means_3c = np.array([0.7, 2, 2.5])
my_stds_3c = np.array([0.6, 0.4, 0.2])
my_weights_3c_a = np.array([0.2, 0.4, 0.4])
my_sample_3 = PyCO2.GMM.sample_from_gmm(n_samples=1000, means=my_means_3c,
stds=my_stds_3c, weights=my_weights_3c_a, random_state=42)
# Case #4: the same of Case #3, but with different weigths
my_weights_3c_b = np.array([0.1, 0.7, 0.2])
my_sample_4 = PyCO2.GMM.sample_from_gmm(n_samples=1000, means=my_means_3c,
stds=my_stds_3c, weights=my_weights_3c_b, random_state=42)

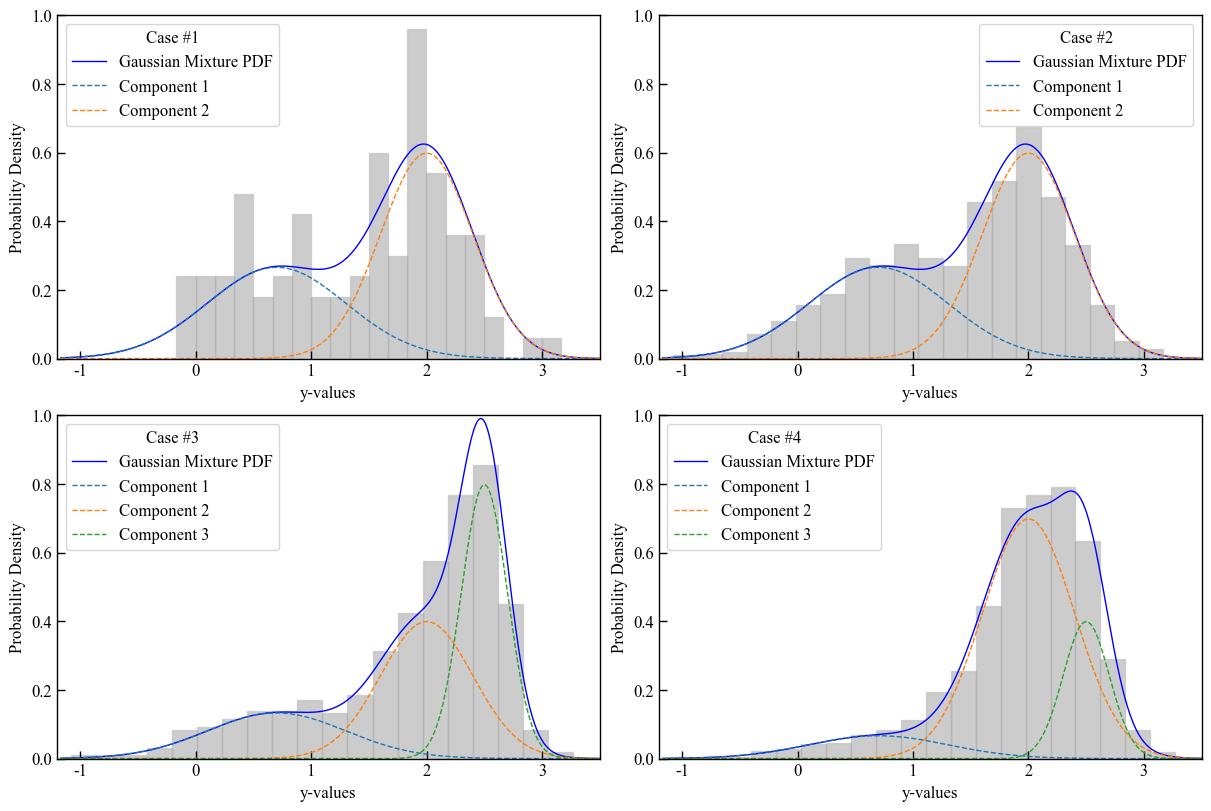

Visualizing the populations
Plot the resulting synthetic samples with the pyco2stats.Visualize_Mpl module.
[23]:
import matplotlib.pyplot as plt
fig = plt.figure(figsize=(12, 8))
plt.rcParams['font.family'] = ['Times New Roman']
plt.rcParams['font.size'] = 12
pdf_plot_kwargs = {'color': 'blue', 'linewidth': 1}
component_plot_kwargs = {'linestyle': '--', 'linewidth': 1}
hist_plot_kwargs = {'alpha': 0.4, 'color': 'gray', 'edgecolor': 'darkgrey'}
x_values = np.linspace(min(my_sample_1) - 1, max(my_sample_1) + 1, 1000).reshape(-1, 1)
ax1 = fig.add_subplot(2,2,1)
PyCO2.Visualize_Mpl.plot_gmm_pdf(ax1, x_values, my_means_2c, my_stds_2c, my_weights_2c, data=my_sample_1,
pdf_plot_kwargs=pdf_plot_kwargs,
component_plot_kwargs=component_plot_kwargs,
hist_plot_kwargs=hist_plot_kwargs)
ax1.legend(title='Case #1')
ax1.set_xlabel('y-values')
ax1.set_ylabel('Probability Density')
ax1.set_ylim(0,1)
ax1.set_xlim(-1.2,3.5)
ax2 = fig.add_subplot(2,2,2)
PyCO2.Visualize_Mpl.plot_gmm_pdf(ax2, x_values,my_means_2c, my_stds_2c, my_weights_2c, data=my_sample_2,
pdf_plot_kwargs=pdf_plot_kwargs,
component_plot_kwargs=component_plot_kwargs,
hist_plot_kwargs=hist_plot_kwargs)
ax2.legend(title='Case #2')
ax2.set_xlabel('y-values')
ax2.set_ylabel('Probability Density')
ax2.set_ylim(0,1)
ax2.set_xlim(-1.2,3.5)
ax3 = fig.add_subplot(2,2,3)
PyCO2.Visualize_Mpl.plot_gmm_pdf(ax3, x_values, my_means_3c, my_stds_3c, my_weights_3c_a, data=my_sample_3,
pdf_plot_kwargs=pdf_plot_kwargs,
component_plot_kwargs=component_plot_kwargs,
hist_plot_kwargs=hist_plot_kwargs)
ax3.legend(title='Case #3')
ax3.set_xlabel('y-values')
ax3.set_ylabel('Probability Density')
ax3.set_ylim(0,1)
ax3.set_xlim(-1.2,3.5)
ax4 = fig.add_subplot(2,2,4)
PyCO2.Visualize_Mpl.plot_gmm_pdf(ax4, x_values, my_means_3c, my_stds_3c, my_weights_3c_b, data=my_sample_4,
pdf_plot_kwargs=pdf_plot_kwargs,
component_plot_kwargs=component_plot_kwargs,
hist_plot_kwargs=hist_plot_kwargs)
ax4.legend(title='Case #4')
ax4.set_xlabel('y-values')
ax4.set_ylabel('Probability Density')
ax4.set_ylim(0,1)
ax4.set_xlim(-1.2,3.5)
plt.savefig("GMM_sampling.png", dpi=300)
GMMs fitting
The fit methods available in the GMM module are the following:
GMM.gaussian_mixture_em : fits the GMM to the sample by using the Expectation-Maximization (EM) algorithm described in Elío et al., 2016;
GMM.gaussian_mixture_sklearn : fits the GMM to the sample by using the EM algorithm implemented in sklearn;
GMM.constrained_gaussian_mixture : fits the GMM using PyTorch with specified constraints on means and standard deviations.
We will use the second synthetic sample (Case #2) generated in the previous steps, to give an example of the fit methods.
[24]:
import pyco2stats as PyCO2
import numpy as np
import matplotlib.pyplot as plt
# my synthetic sample
my_sample = my_sample_2
# number of components
n_comp = 2
# Fit GMM using EM algorithm
EM_mu, EM_std, EM_w, EM_ll = PyCO2.GMM.gaussian_mixture_em(my_sample, n_comp)
# Fit GMM using EM algorithm implemented using scikit-learn (skEM))
skEM_mu, skEM_std, skEM_w, skEM_ll = PyCO2.GMM.gaussian_mixture_sklearn(my_sample, n_comp)
# Fit GMM using the constrained Gradient Descent (cGD) algorithm
mean_bounds = [(-0.5, 1.5), (1, 3)]
std_bounds = [(0.1, 2.5), (0.1, 2.5)]
cGD_mu, cGD_std, cGD_w = PyCO2.GMM.constrained_gaussian_mixture(my_sample, mean_bounds,
std_bounds, n_comp, verbose=False)

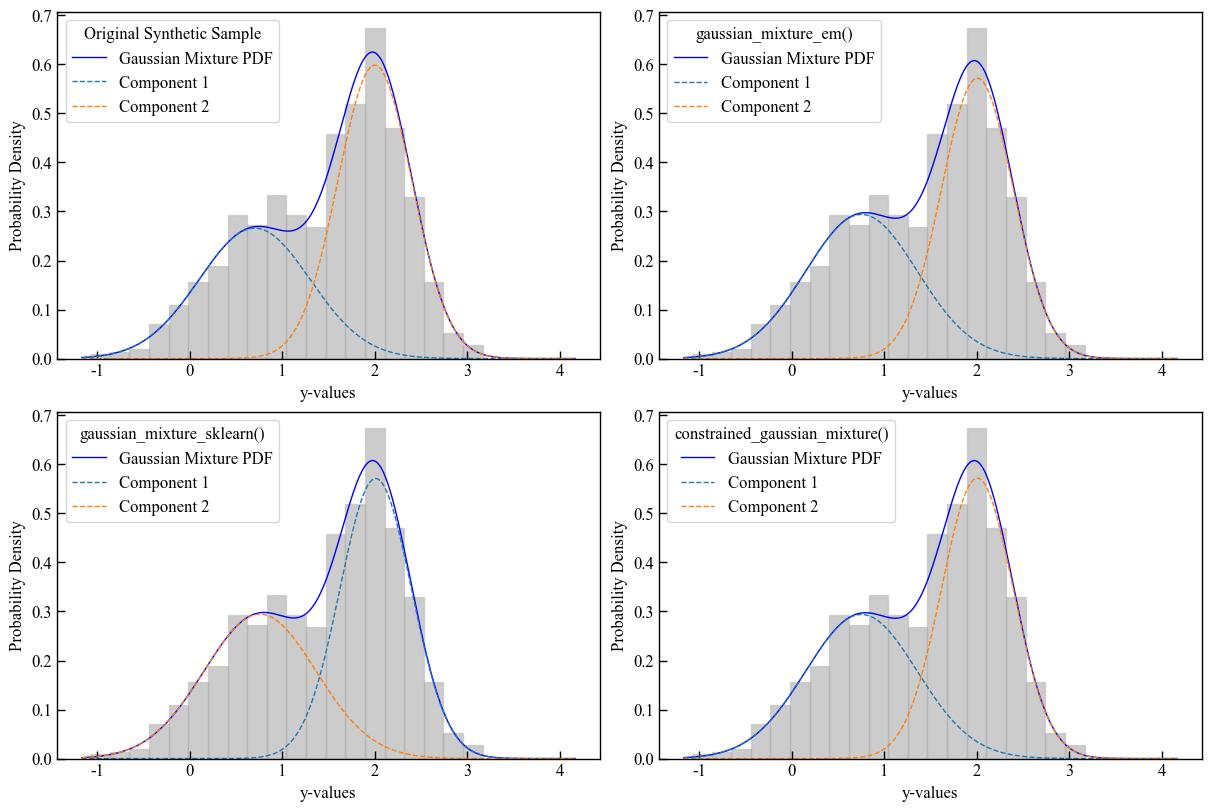

Visualizing the fitting
Plot the resulting GMM fits with the pyco2stats.Visualize_Mpl module.
[25]:
fig = plt.figure(figsize=(12, 8)) # Increase figure size
plt.rcParams['font.family'] = ['Times New Roman']
plt.rcParams['font.size'] = 12
ax1 = fig.add_subplot(2,2,1)
PyCO2.Visualize_Mpl.plot_gmm_pdf(ax1, x_values, my_means, my_stds, my_weights, data=my_sample,
pdf_plot_kwargs=pdf_plot_kwargs,
component_plot_kwargs=component_plot_kwargs,
hist_plot_kwargs=hist_plot_kwargs)
ax1.legend(title='Original Synthetic Sample')
ax1.set_xlabel('y-values')
ax1.set_ylabel('Probability Density')
ax2 = fig.add_subplot(2,2,2)
PyCO2.Visualize_Mpl.plot_gmm_pdf(ax2, x_values,EM_mu, EM_std, EM_w, data=my_sample,
pdf_plot_kwargs=pdf_plot_kwargs,
component_plot_kwargs=component_plot_kwargs,
hist_plot_kwargs=hist_plot_kwargs)
ax2.legend(title='gaussian_mixture_em()')
ax2.set_xlabel('y-values')
ax2.set_ylabel('Probability Density')
ax3 = fig.add_subplot(2,2,3)
PyCO2.Visualize_Mpl.plot_gmm_pdf(ax3, x_values, skEM_mu, skEM_std, skEM_w, data=my_sample,
pdf_plot_kwargs=pdf_plot_kwargs,
component_plot_kwargs=component_plot_kwargs,
hist_plot_kwargs=hist_plot_kwargs)
ax3.legend(title='gaussian_mixture_sklearn()')
ax3.set_xlabel('y-values')
ax3.set_ylabel('Probability Density')
ax4 = fig.add_subplot(2,2,4)
PyCO2.Visualize_Mpl.plot_gmm_pdf(ax4, x_values, cGD_mu, cGD_std, cGD_w, data=my_sample,
pdf_plot_kwargs=pdf_plot_kwargs,
component_plot_kwargs=component_plot_kwargs,
hist_plot_kwargs=hist_plot_kwargs)
ax4.legend(title='constrained_gaussian_mixture()')
ax4.set_xlabel('y-values')
ax4.set_ylabel('Probability Density')
plt.savefig("GMM.png", dpi=300)

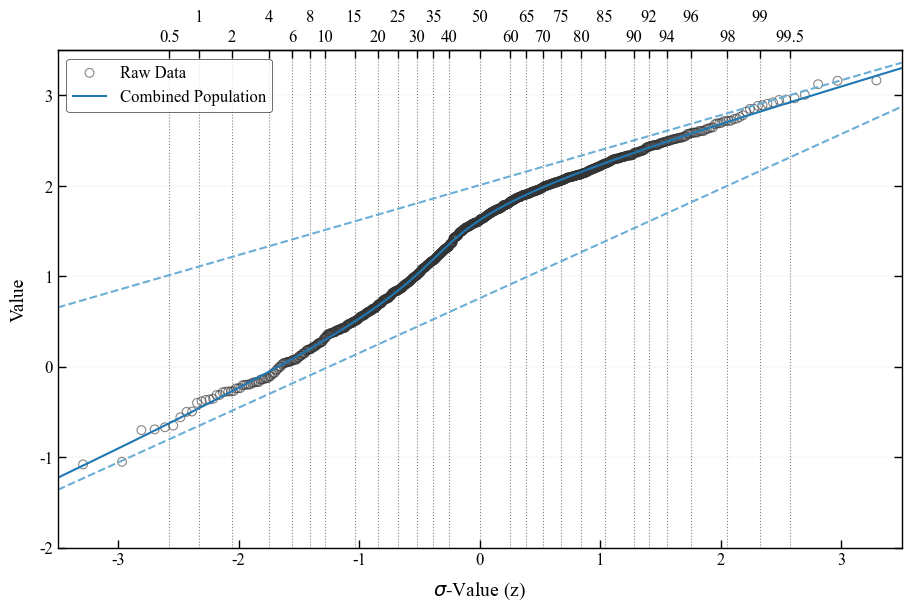

Sinclair-like visualization
The Sinclair method [Sinclair, 1974] is a reliable graphical procedure for partitioning datasets of polymodal values into two or more log-normal sub-populations. The method is based on the evidence that, on a probability plot, a dataset composed of multiple (n) superimposed log-normal populations plots as a series of joined straight-line segments with different slopes. Changes in the slope of the curve, called inflection points, are typically n-1 and they indicate the relative proportions of the different populations. The Sinclair-like visualization of the fitted GMM is obtained by using the pyco2stats.GMM.gaussian_mixture_sklearn by means of the pyco2stats.Visualize_Mpl module.
[26]:
import matplotlib.pyplot as plt
import numpy as np
import pyco2stats as PyCO2
# 1) Enable constrained_layout and set up font‐fallback for missing glyphs
plt.rcParams['font.family'] = ['Times New Roman', 'DejaVu Sans']
plt.rcParams['axes.unicode_minus'] = False # use ASCII minus
# 2) Global style tweaks
plt.rcParams.update({
'font.size': 12,
'axes.linewidth': 1.0,
'axes.edgecolor': 'black',
'xtick.direction': 'in',
'ytick.direction': 'in',
'xtick.major.size': 6,
'ytick.major.size': 6,
'grid.color': 'gray',
'grid.linestyle': '--',
'grid.linewidth': 0.3,
'grid.alpha': 0.3,
})
# ── 3) Draw the figure ─────────────────────────────────────────────
fig, ax = plt.subplots(figsize=(9, 6), constrained_layout=True)
# 3a) Raw data as open circles
PyCO2.Visualize_Mpl.pp_raw_data(
my_sample,
ax=ax,
marker='o',
s=40,
c='none',
edgecolor='#333333',
linewidth=0.8,
alpha=0.6,
label='Raw Data'
)
# 3b) Combined mixture curve
PyCO2.Visualize_Mpl.pp_combined_population(
skEM_mu, skEM_std, skEM_w,
ax=ax,
linestyle='-',
linewidth=1.5,
color='#1f78b4',
label='Combined Population'
)
# 3c) Individual component curves
PyCO2.Visualize_Mpl.pp_single_populations(
skEM_mu, skEM_std,
ax=ax,
linestyle='--',
linewidth=1.5,
color='#6baed6'
)
# 3d) Percentiles
PyCO2.Visualize_Mpl.pp_add_percentiles(
ax=ax,
percentiles='full',
linestyle=':',
linewidth=0.8,
color='gray',
label_size=12,
zorder=0
)
# ── 4) Axes limits, labels, grid & spines ──────────────────────────
ax.set_xlim(-3.5, 3.5)
ax.set_ylim(-2.0, 3.5)
ax.set_xlabel(r'$\sigma$-Value (z)', fontsize=14, labelpad=8)
ax.set_ylabel('Value', fontsize=14, labelpad=8)
ax.grid(axis='y')
# draw ticks on both sides
ax.yaxis.set_ticks_position('both')
ax.tick_params(axis='y', which='both', labelright=False, right=True, left=True)
# ── 5) Legend ─────────────────────────────────────────────────────
leg = ax.legend(
loc='upper left',
frameon=True,
framealpha=0.8,
edgecolor='black',
fontsize=12
)
leg.get_frame().set_linewidth(0.5)
# ── 6) Save & show ─────────────────────────────────────────────────
plt.savefig("Visualize_Sinclair_Mpl.png", dpi=300, bbox_inches='tight')
plt.show()

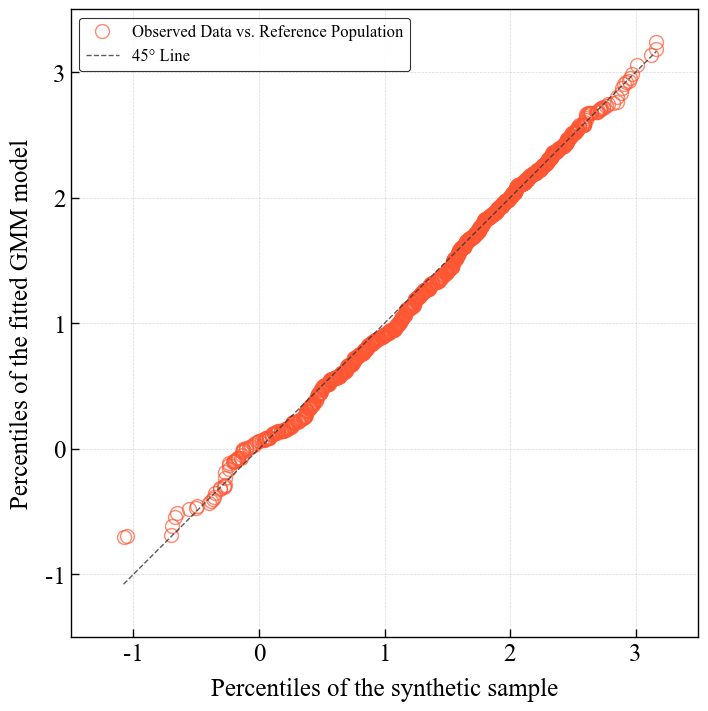

Q-Q plot visualization
Resampling from the sklearn fit obtained by pyco2stats.GMM.gaussian_mixture_sklearn and q-q plot visualization by means of the pyco2stats.Visualize_Mpl module.
[27]:
# ── 1) Resampling from the GMM made with scikit-learn ─────────────────────────────────────
skEM_sample = PyCO2.GMM.sample_from_gmm(n_samples=500, means=skEM_mu, stds=skEM_std, weights=skEM_w, random_state=42)
# ── 2) Imports & data as before ─────────────────────────────────────
import numpy as np
import matplotlib.pyplot as plt
import pyco2stats as PyCO2
# ── 3) Global style (same as above) ─────────────────────────────────
plt.rcParams.update({
'figure.constrained_layout.use': True,
'font.family': ['Times New Roman', 'DejaVu Sans'],
'font.size': 18,
'axes.linewidth': 1.0,
'axes.edgecolor': 'black',
'xtick.direction': 'in',
'ytick.direction': 'in',
'xtick.major.size': 6,
'ytick.major.size': 6,
'xtick.major.width': 1.0,
'ytick.major.width': 1.0,
'grid.color': 'gray',
'grid.linestyle': '--',
'grid.linewidth': 0.5,
'grid.alpha': 0.3,
})
# ── 4) Create figure & axes ────────────────────────────────────────
fig, ax = plt.subplots(figsize=(7, 7), constrained_layout=True)
# ── 5) Draw Q–Q via new signature: raw_data, model_data, ax, then
# marker_kwargs=... and line_kwargs=... ─────────────────────────
PyCO2.Visualize_Mpl.qq_plot(
my_sample,
skEM_sample,
ax,
line_kwargs={
'linestyle':'--',
'color':'#333333',
'linewidth':1.0,
'alpha':0.8
},
marker_kwargs={
'marker': 'o',
'markersize': 10,
'markeredgecolor': '#FF5733',
'markerfacecolor': 'none',
'alpha': 0.7,
}
)
# ── 6) Axes limits, aspect, labels ─────────────────────────────────
ax.set_xlim(-1.5, 3.5)
ax.set_ylim(-1.5, 3.5)
ax.set_aspect('equal', adjustable='box')
ax.set_xlabel('Percentiles of the synthetic sample', fontsize=18, labelpad=8)
ax.set_ylabel('Percentiles of the fitted GMM model', fontsize=18, labelpad=8)
# ── 7) Grid ───────────────────────────────────────────────
ax.grid(True)
# ── 8) Legend ─────────────────────────────────────────────────────
leg = ax.legend(loc='upper left',
frameon=True, framealpha=0.8,
edgecolor='black', fontsize=12)
leg.get_frame().set_linewidth(0.8)
# ── 9) Save & show ─────────────────────────────────────────────────
plt.savefig("qq_plot_Visualize_Mpl.png", dpi=300, bbox_inches='tight')
plt.show()
